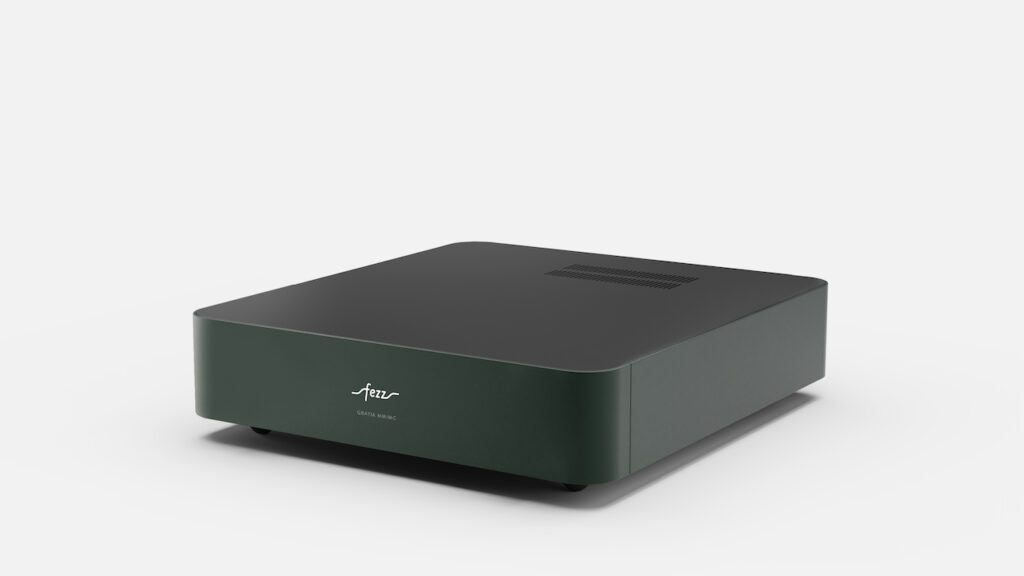

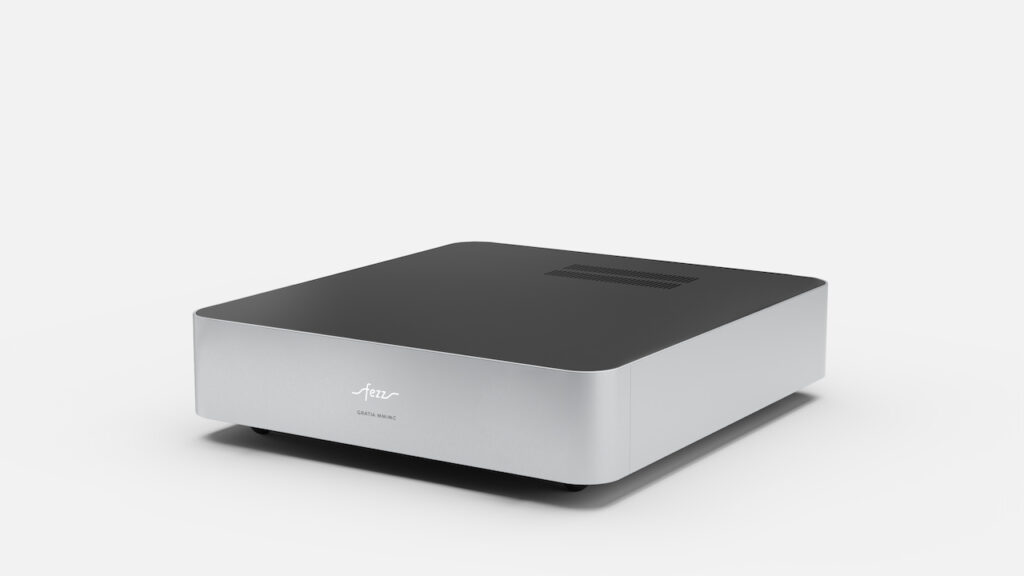

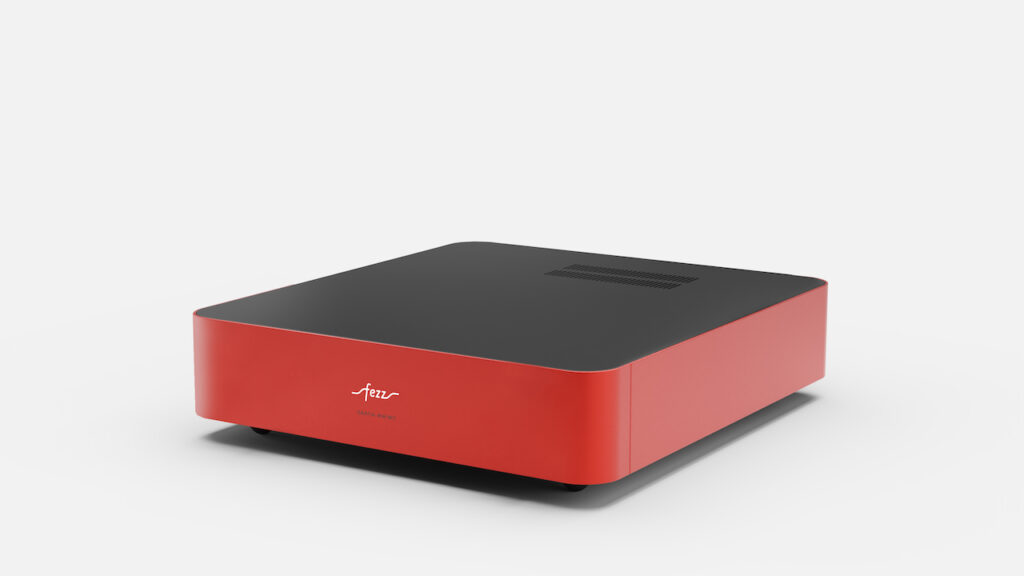

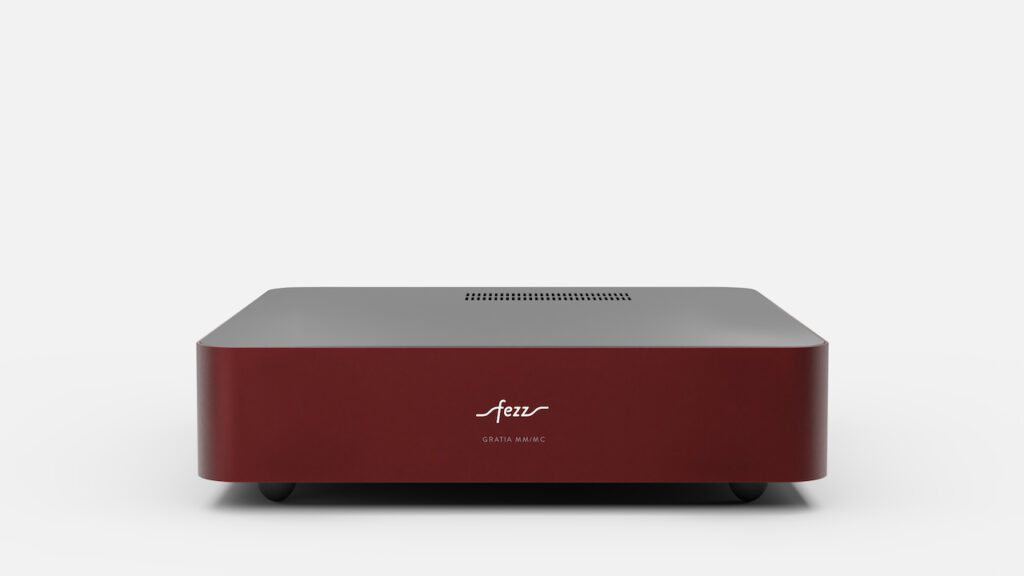

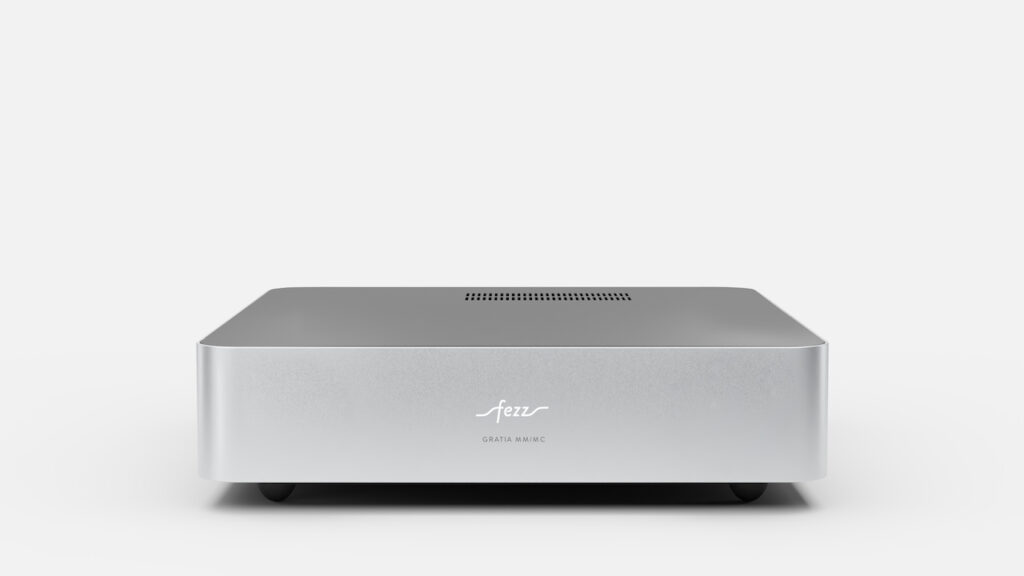

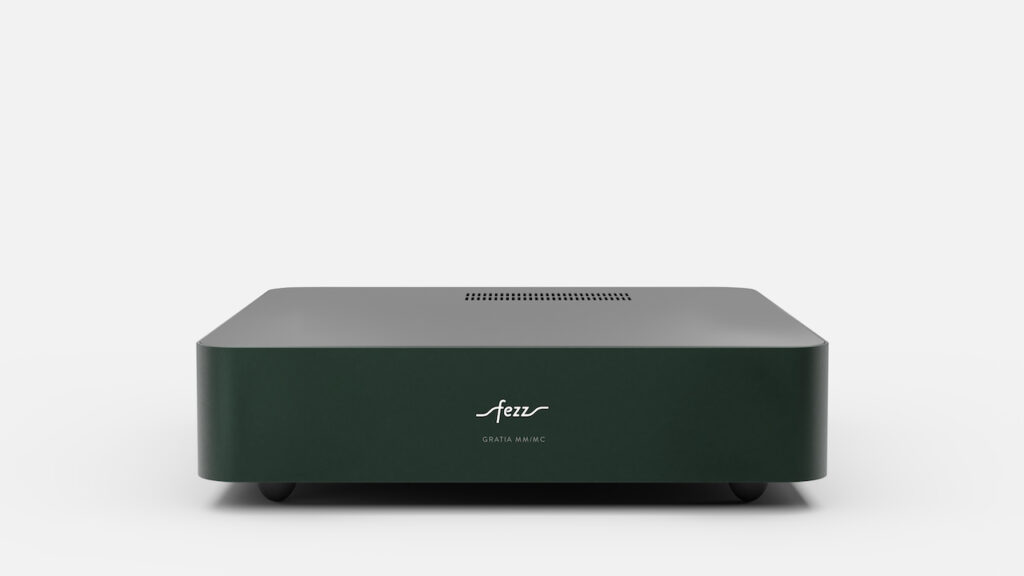

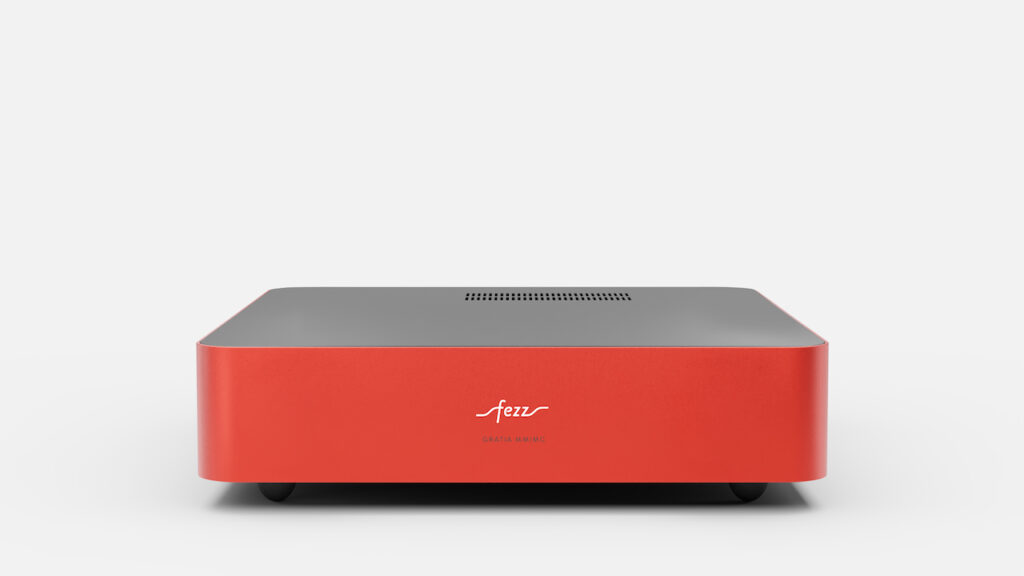

    New version of Gratia MM/MC phono stage.




    In standard Gratia is equipped with anti-vibration feet, adapted to the weight of the device. Backlight logo. A phono stage is designed to work with MM, MC HO and MC cartridges. The amplification section is based on the high end operational amplifier – Burson Supreme Sound Opamp V5i. The heart of the extended power path is the Supreme Audio Toroidy.pl transformer. Undeniable advantage of Gratia is universality. Thanks to the wide settings varietes, it can be a perfect match with a low output signal level MC cartridges.

    Type:
    Phono preamplifier MM/MC

    Model:
    Gratia MM/MC, Linia Evolution

    AC Supply:
    Stabilized + toroidal Supreme Audio Grade transformer by Toroidy.pl

    Gain:
    MM/MC LOW: 50dB

    Cadridge type:
    MM/MC HO/MC

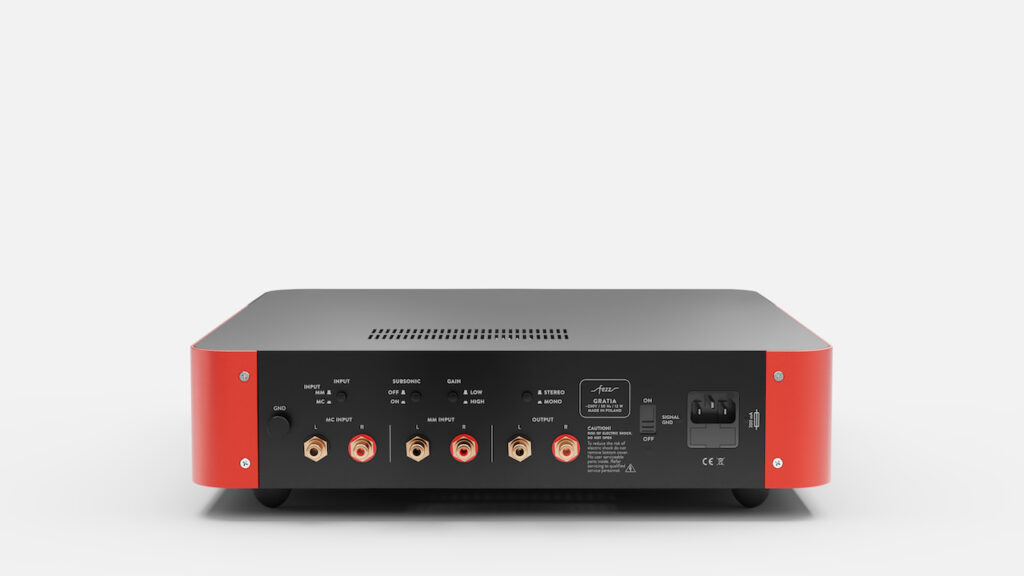

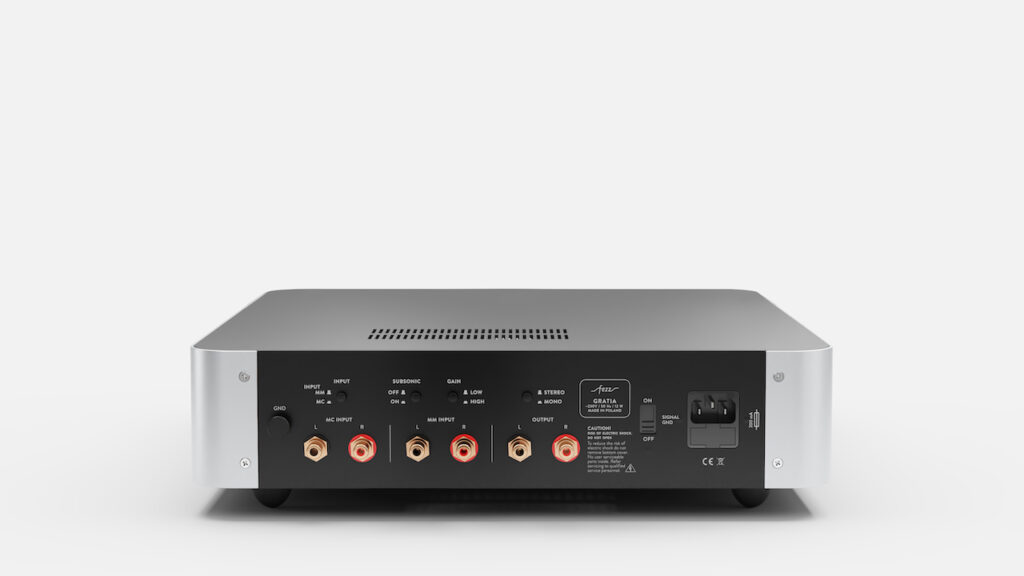

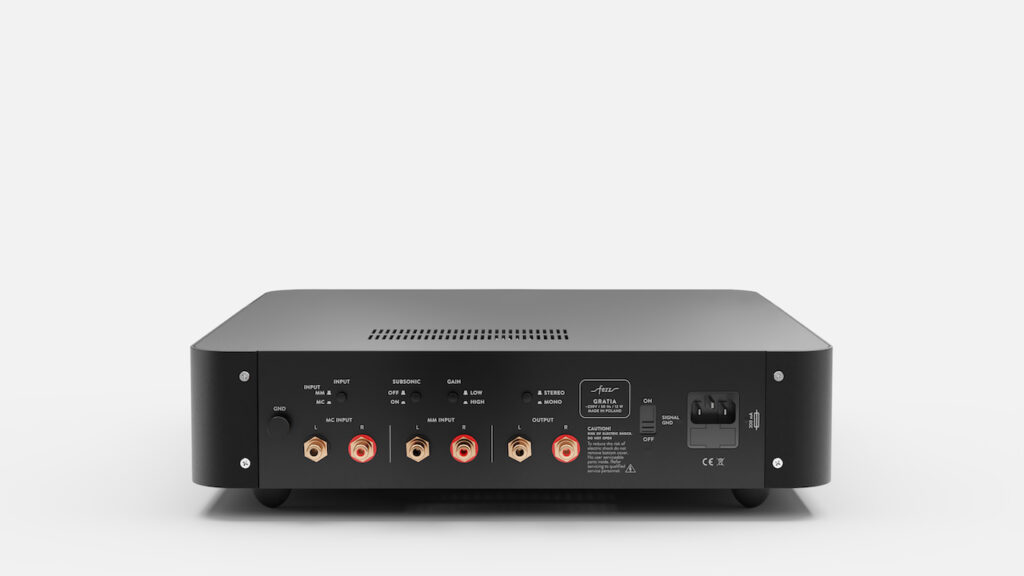

    Inputs/Outputs:
    2/1

    Input impedance:
    47kΩ / 50-1kΩ

    Subsonic filter:
    YES

    Tryb Stereo/Mono:
    YES

    Zniekształcenia THD:
    (20Hz-20kHz): <0.005%

    Stosunek sygnał/szum:
    >92dB

    Pobór mocy:
    12W

    Waga:
    8 kg

    Wymiary:
    355x380x95 mm
